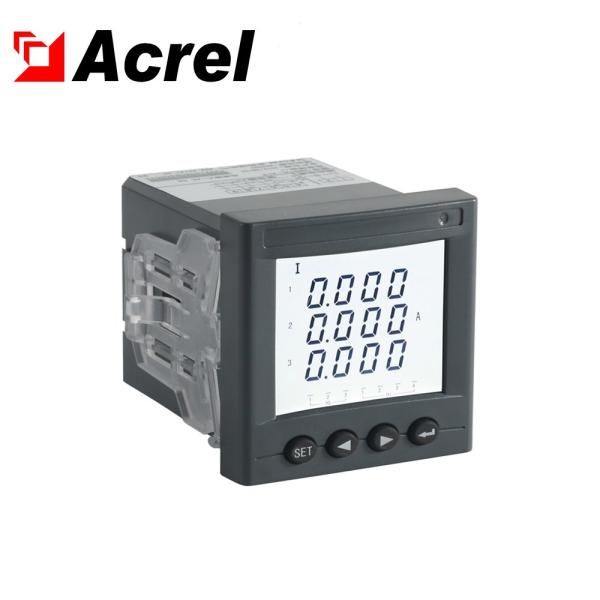

AMC Series AC Panel Meter 20mA DC Digital Multifunction Power

Brand Name : Acrel

Model Number : AMC72L-E4/KC

Certification : CE

Place of Origin : China

MOQ : 1 Pieces

Payment Terms : T/T

Delivery Time : 2-3 days

Measurement : 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc

Rated Voltage : 220v/380v

Rated Current : 1A/5A

Communication : RS485 (MODBUS-RTU)

SOE Funciton : Event&Demand&Extremum Record

Harmonic Measurement : 2~31st and total Harmonic

Analog Output : 4~20mA DC or 1~5V DC

Contact Now

General

AMC series programmable intelligent meters, adopting AC sampling technology, can directly or indirectly measure electric voltage and current of single-phase or three-phase grid. It can be used for local display, and connecting industrial control devices to form measuring control systems.

Panel overview

Main parameters

Function	Description&Value
Measurement	3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc
Display	LCD display
Communication (Optional)	RS485,Modbus-RTU protocol;
Alarm Output (Optional)	1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, Used for high,low,unbalance alarm etc.
DI/DO Switching (Optional)	DI (Digital input): 2-channel or 4-channel dry contact digital input with built in power supply DO (Digital output): 2-channel digital output with NO relay contact. Capacity: 3A/30V DC,3A/250V AC
Input	Rated Voltage	AC Voltage Input: 400V AC L-L (via direct connetion); 100V AC L-L (via -/100V AC PTs)
	Rated Current	AC Current Input: 5A AC or 1A AC (via -/5A AC or -/1A AC CTs)
	Overload	Current&Voltage input overload:1.2 times rated value(continuous); 10 times rated value /1 second
Measuring Accuracy	Active Power	0.5%
	kWh	0.5%
	kVarh	1.0%
Insulation resistance		≥ 100MΩ
Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply,switching output,Current Input,voltage Input AC 2 kV 1min; Between Transmitting,Communication,Pulse Output,switching input AC 1kV 1 min;

Dimension
