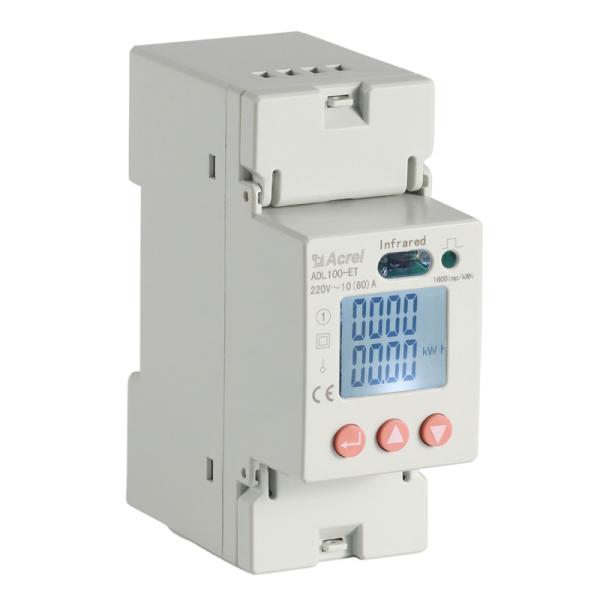

AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter

  • 1
  • 2
  • 3

Brand Name : Acrel

Model Number : ADL100-ET

Certification : ISO/CE

Place of Origin : Jiangsu,China

MOQ : 1

Price : USD 5-9 PSC

Payment Terms : L/C, T/T

Supply Ability : 2000000 per year

Delivery Time : 3 work days

Packaging Details : 28X25X20 cm

Phase : Single Phase

Communication : RS485 (Modbus-RTU)

Display : LCD

Accuracy : kWh Class 1,Kvarh Class 2

Installation : Din 35mm

Contact Now

ADL100-ET Single Phase Multi-Function Energy Meter

● AC220V

● 10(60)A,20(100)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm


Characteristic

AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter
Communication
RS485
(Modbus-RTU)
AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter
Display
8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter
Rated U and I
AC220V
10(60)A

Function

Accuracy
kWh Class 1,Kvarh Class 2

Frequency
50HZ

Auxiliary power supply(self supply)
AC 220V(L-N),range:154~264Vac

Consumption
<10VA(Single phase)
AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter
AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter
Installation
DIN 35mm

Dimension(L*W*H)
18*88*70 mm

Starting current
0.004Ib


Parameters

Voltage
Reference voltage
AC 220V
Reference frequency
45-65 Hz
Consumption
<10VA( Single phase)
Current
Maximum
60A
Starting current
0.004 Ib
Consumption
<4VA(Maximum current)
Measurement performance
Accuracy of active kWH
Class 1
Standards complicant
IEC 62053-21:2003
Pulse
Pulse width
80+20 ms
Pulse constant
3200 imp/kWH
Communication

Interface
RS485
Protocol
Modbus-RTU
Outling
L*W*H(mm)
36*88*70
Environment
Temperature
Operating:-25℃~55℃;Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
<2000m

LCD Display

AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter

Wiring

AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter

Typical connection

AC220V ADL100-ET Single Phase Digital Energy Meter / Multi Function Energy Meter
