220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E

Brand Name : ACREL

Model Number : ADL

Certification : ISO/CE

Place of Origin : Jiangsu, China

MOQ : 1

Price : USD 5-9 PCS

Payment Terms : L/C, T/T

Supply Ability : 2000000 per year

Delivery Time : 5-8 work days

Packaging Details : 28X25X20 cm

Phase : Single Phase

Communication : RS485 (Modbus-RTU)

Accuracy : kWh Class 1,Kvarh Class 2

Installation : Din 35mm

Contact Now

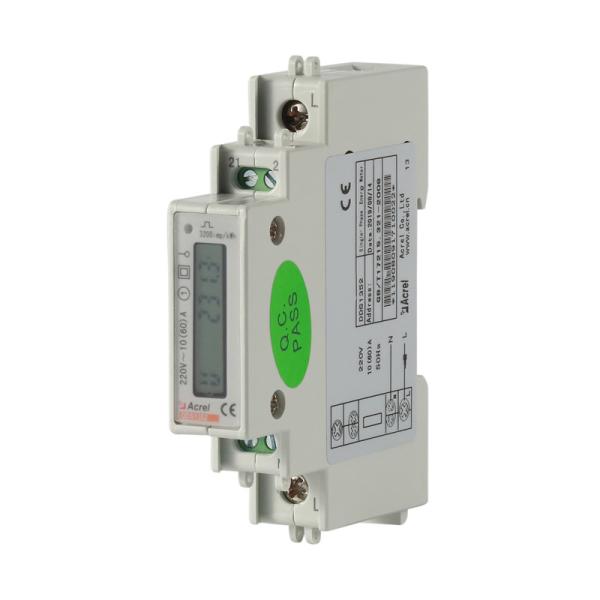

ADL10-E Single Phase Electric Energy Meter

● AC 220V

● 10(60)A
● RS485,MODBUS-RTU
● LCD display
● kWh Class 1,Kvarh Class 2
● U,I,P,Q,S,PF,kWh,kvarh
● DIN 35mm

Characteristic

220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E

Communication

RS485
(Modbus-RTU)

220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E

Display

8 digits LCD display U, I, P, Q, PF, kWh, Power measure
(999999.99kWh)

220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E

Rated U and I

AC220V
10(60)A

Function

Accuracy kWh Class 1,Kvarh Class 2 Frequency 50HZ Auxiliary power supply(self supply) AC 220V(L-N),range:154~264Vac Consumption <10VA(Single phase)
	Installation DIN 35mm *Dimension(LWH)* 188870 mm Starting current 0.004Ib

LCD Display

220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E

Wiring

220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E

Typical connection

220V 50HZ MODBUS RTU Din Rail Single Phase Electronic Energy Meter ADL10-E
