Brand Name : Acrel
Model Number : AMC48L-AI
Certification : CE
Place of Origin : Jiangsu, China
MOQ : 1 piece
Price : $25/ piece
Payment Terms : T/T
Delivery Time : 2-3 work days
Packaging Details : carton box
Phase : 1 Phase
Measuring Energy Range : 0-99999KWH
Accuracy : Class 0.5
Voltage : AC/DC 85~265V
Operating Temperature : -40℃-+70℃
Installation : panel meter
Certificate : CE/IEC
Display : LCD
Communication : RS485
Frequency : 45-65Hz
key word : AMC48-AI Programmable AC Single Phase Current energy Meter for cabinet
Power consumption : ＜0.5VA
Analog output : DC4~20mA( load < 500Ω)

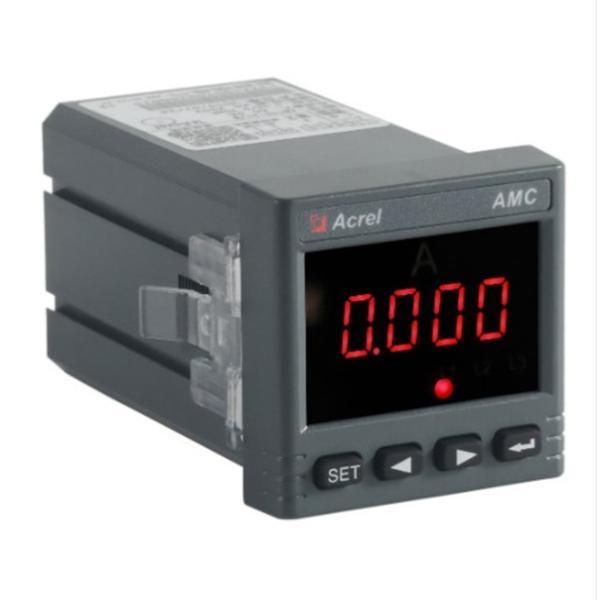

AMC48-AI Programmable AC Single Phase Current energy Meter for
cabinet
AMC series programmable intelligent electrical measuring instrument
adopts AC sampling technology, It has RS-485 communication
interface and adopts Modbus-RTU protocol; it can be equipped with
analog output, relay alarm output, switch input/output. According
to different requirements, set and control the transformation
ratio, alarm, communication and other parameters through the keys
on the instrument panel.
AMC48-AI Programmable AC Single Phase Current energy Meter for cabinet
| Technical Parameter | Value | ||
| Input | Rated value | Voltage: AC100V, 220V or 380V, current: AC1A or 5A | |
| Overload | Voltage: 1.2 times rated value(continuous) | ||
| 2 times rated value(1 second) | |||
| Current: 1.2 times rated value(continuous) | |||
| 10 times rated value (1 second) | |||
| Frequency | 45Hz~65Hz | ||
| Power consumption | ＜0.5VA | ||
| Accuracy | Class 0.5 | ||
| Function | Display | LED or LCD | |
| Communication | RS485(Modbus-RTU) | ||
| Alarm | 1 channel passive relay,contact capacity 3A/30VDC, 3A/250VAC | ||
| Analog output | DC4~20mA( load < 500Ω) | ||
| Switching | Voltage range | AC/DC 85~265V | |
| Power consumption | 2 channels switching output, NO relay contact, capacity 3A/30VDC, 3A/250VAC | ||
| Auxiliary power supply | Voltage range | AC/DC 85~265V | |
| Power consumption | <5VA | ||
| Insulation resistance | ≥100MΩ | ||
| Environment | Temperature | Operating:-10°C~+55°C Storage: -25°C ~+70°C | |
| Humidity | ≤93%(no condensation) | ||
| Altitude | ≤2500m | ||
Auxiliary power supply
AC 220V
Consumption
Current: Power consumption< 0.5VA;
Auxiliary power supply: power consumption≤5VA
Installation
Panel mounted
